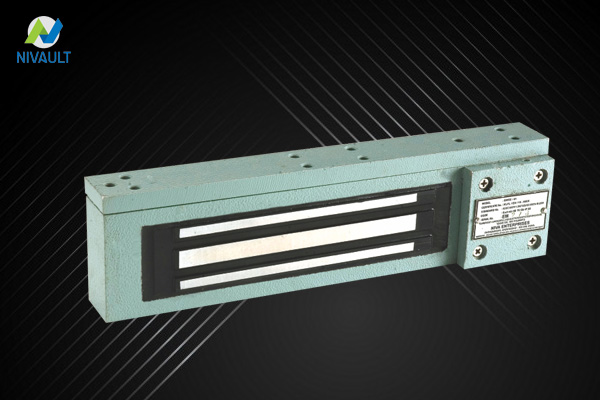

FLP ElectroMagnetic Door Closure
MODEL NO: EMDC/01
- TE REPORT NO.: KLPL/Ex/15-066X
- STANDARDS: IS/I EC 60079-0: 2007, IS/I EC 60079-1: 2007, IS/I EC 60079-18: 2009
- MARKING: Ex d mb IIB T6 GB
FEATURES:
- LM-6 ALLUMINIUM HOUSING
- Dual Voltage 12 OR 24VDC
- ANTI-RESIDUAL KICK OFF RUBBER
- LOW CURRENT CONSUMPTION
SPECIFICATION:
- VOLTAGE TOLERANCE: 15%
- VOLTAGE INPUT: 12/24V DC
- CURRENT DRAW: 480MA AT 12VDC; 240MA AT 24VDC
- MAGNETIC CONTACT FOR DOOR STATUS(NO TYPE)
- HOLDING FORCE: 600LBS(272KGS)
- OPERATING TEMPERATURE: 0-55'C
- ANTI-RUST SURFACE TREATMENT:
- BLUE ZINC PLATING/ NICKLE CHROME PLATING
- WARRANTY: 2 YEARS
- DIMENSION: 275LX63WX42T
